Attic Ladder Fantozzi Truss

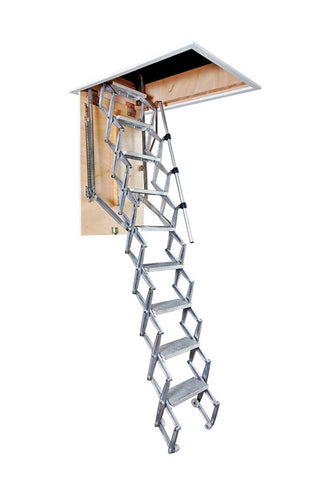

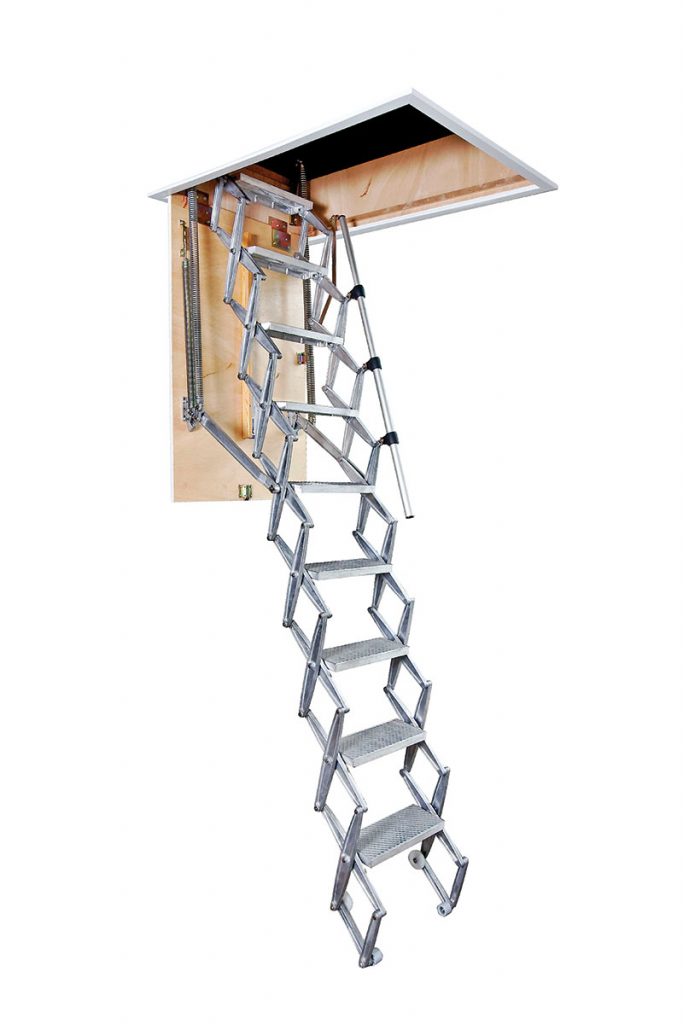

FANTRUSS 10: Italian aluminium scissor attic ladder for truss roofs.

A well-designed, stylish high quality die-cast aluminium concertina ladder.

CUSTOMER PROFILE:

• Domestic customers with truss roofs who require the maximum in strength, Italian design and ease of use.

• Commercial customers who need safe and easy access to storage, air-conditioning, telecommunications, electrical, plant or other equipment.


CUSTOMER BENEFITS:

• Italian-engineered, tested and certified to EN 14975 (European Ladder Standard).
• A die-cast aluminium concertina ladder complete with galvanised box frame for strength and longevity.
• Hatchbox constructed from 1.2mm thick steel and measuring 140mm deep
• The hatchbox is fixed into position using 4 clamps which allow it to be installed into a floor thickness up to 280mm.
• The ladder stores completely within the hatch opening.
• 16mm thick trap door from first-choice raw wood chipboard.
• The unit has a counterbalanced spring operation for easy fingertip use.
• A telescopic handrail fitted to the right hand side as standard.
• Two top exit rails for safety and comfort.
• The trapdoor supplied is constructed from 15mm thick high quality plywood.
• Comes complete with operating pole, full installation instructions and fittings.

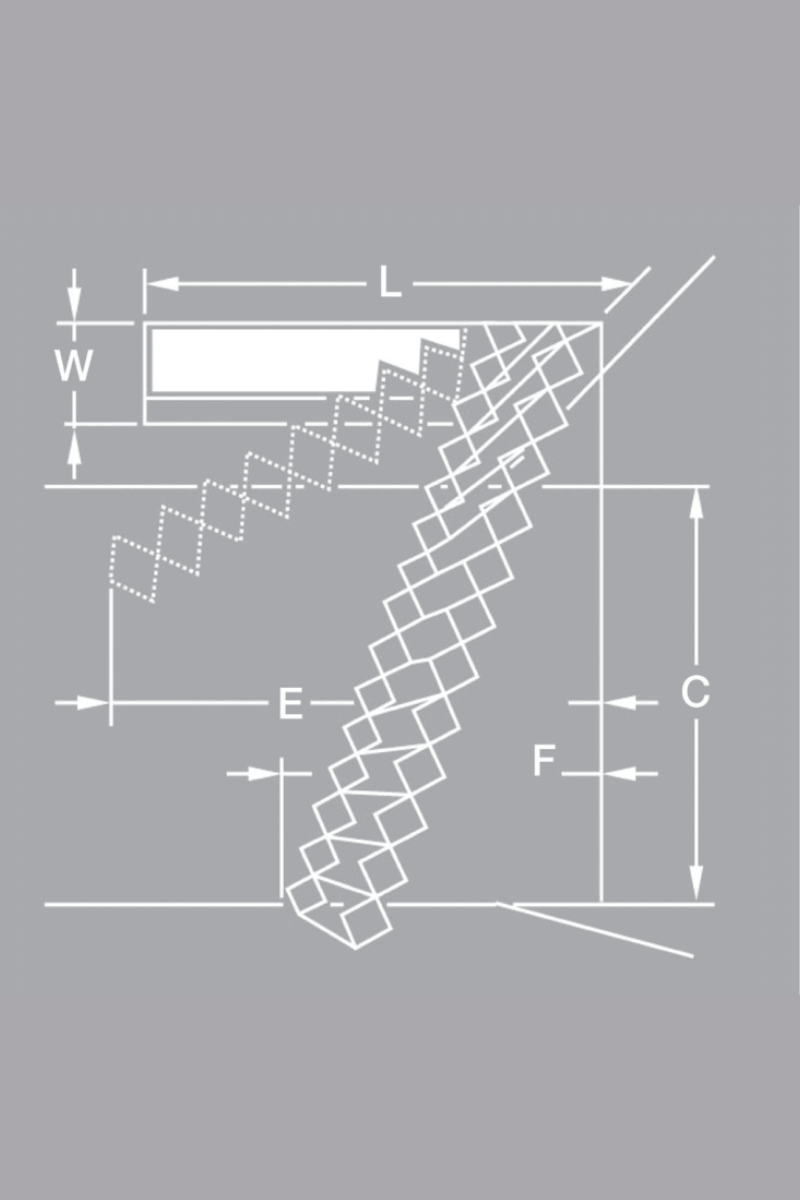

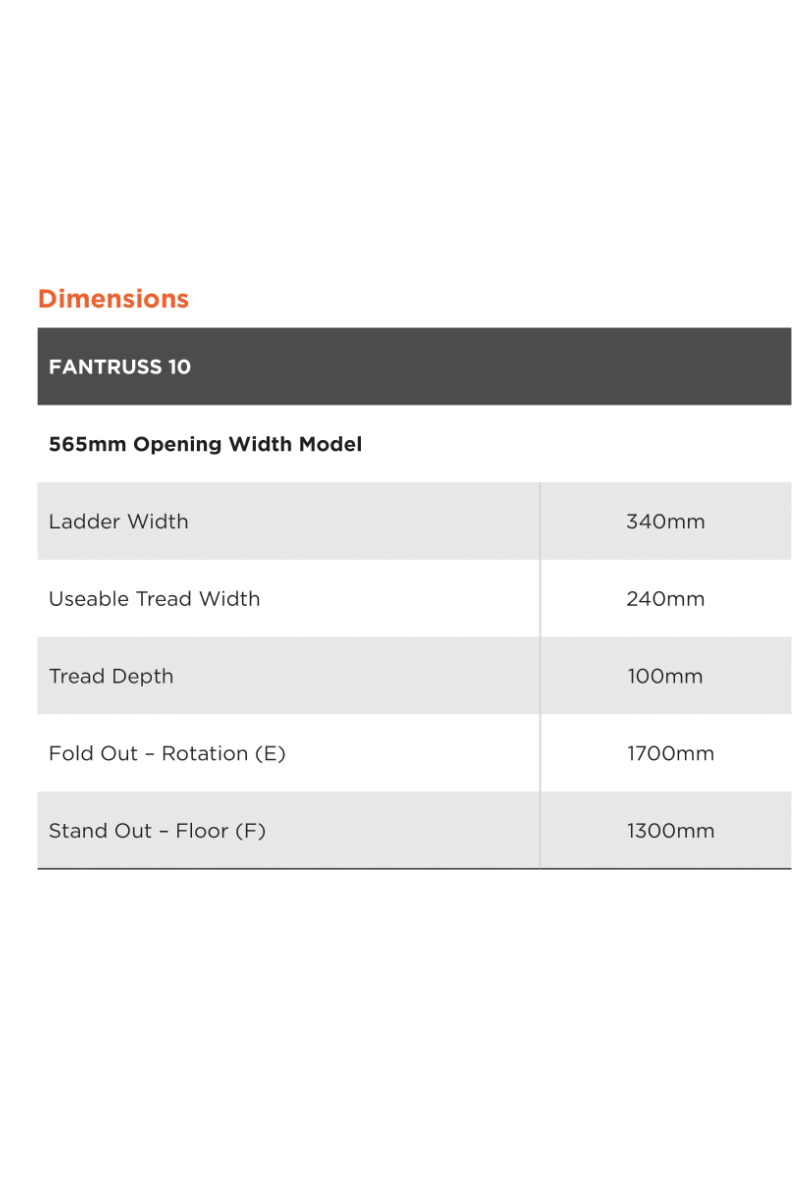

Technical Specifications
